EN3DC40+. Enerdrive ePOWER DC2DC+ Battery Charger 40A

ePower DC to DC battery charger is smaller than our most compact AC Battery Charger.

Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
40A output up to 40+°C with thermo controlled fan cooling
Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included in charger for more accurate battery charging

The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

Multistage Charging Process

The ePOWER DC2DC+ Battery Charger is a fully automatic, set and forget charger. It is designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.

The ePOWER DC2DC+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.

As dictated by battery manufacturer’s recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive ePOWER DC2DC+ smart charger delivers three primary charge stages.

Battery charging occurs in three stages: 1) Bulk/Boost charge (80% of battery recovered quickly), 2) Absorption Charge (remaining 20% charged at steady voltage), 3) Float (constant, safe voltage held to prevent overcharging and maintain power supply for loads).

Smart Charging Feature

The ePOWER DC2DC+ Battery Charger will regulate its output based on the loads connected to your battery bank. This function is important to maintain the life of your battery bank as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank. The ePOWER DC2DC+ Battery Charger has two methods of load based regulation to ensure your battery charger transitions to float when it should do so.

Battery Temperature Sensor

Included standard with all ePOWER Battery Chargers.

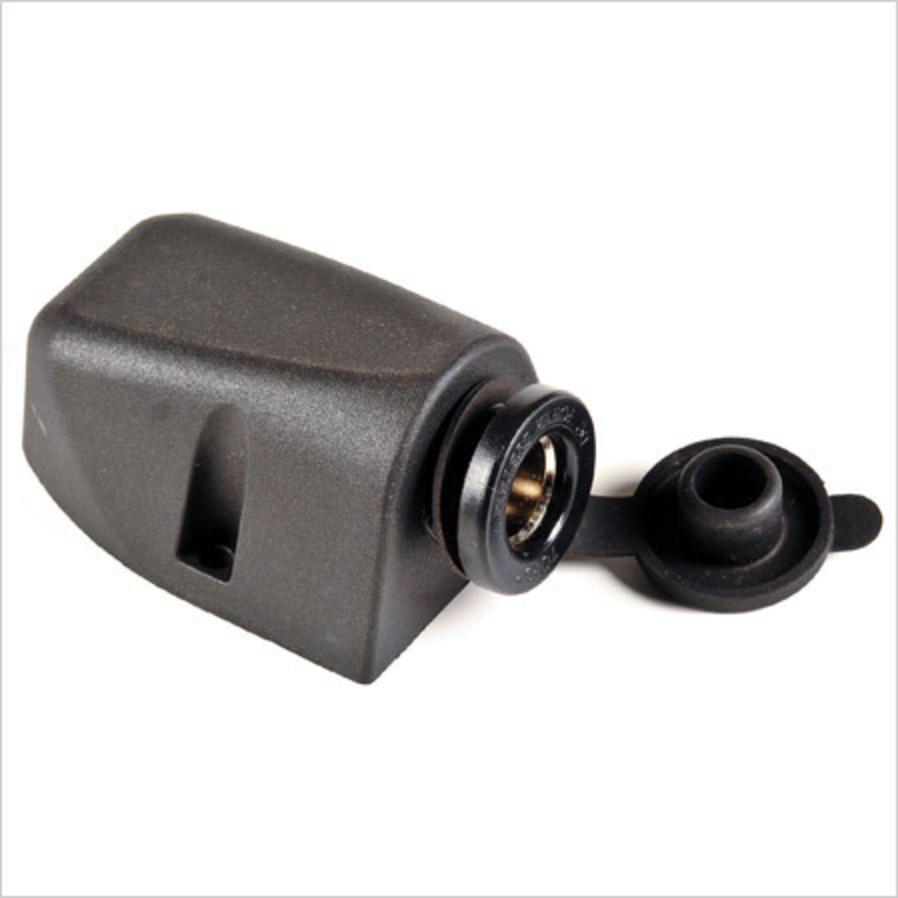

Socket - Merrit Style Female Surface Mount
