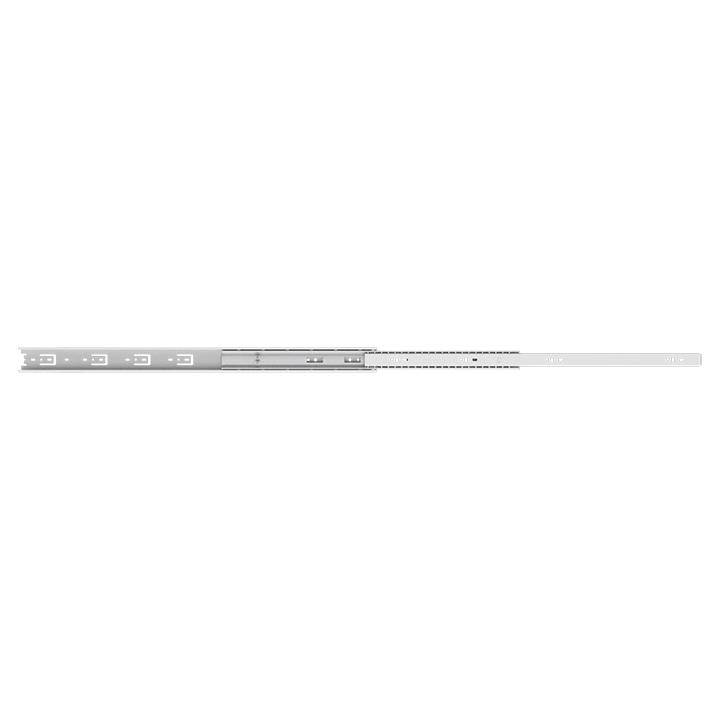

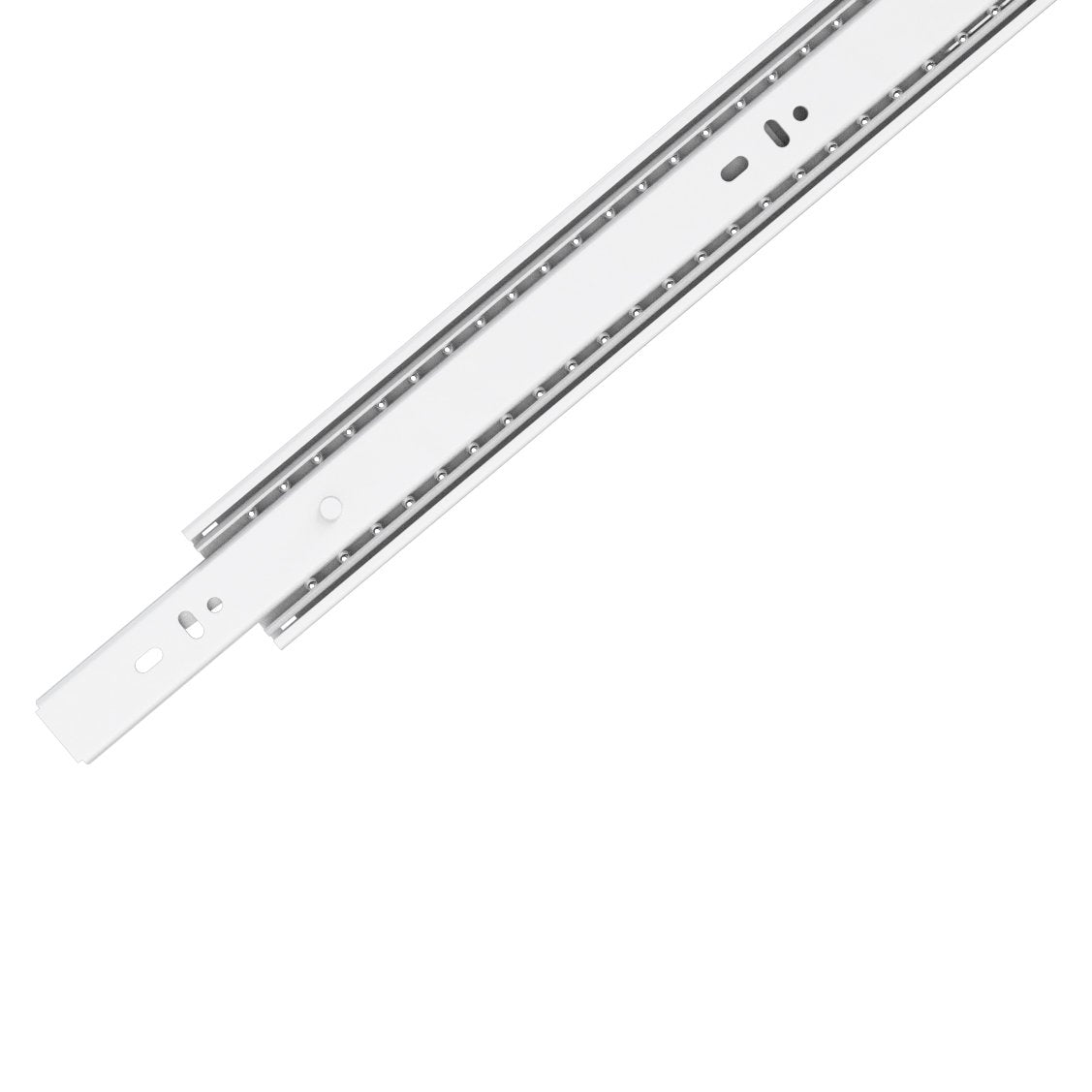

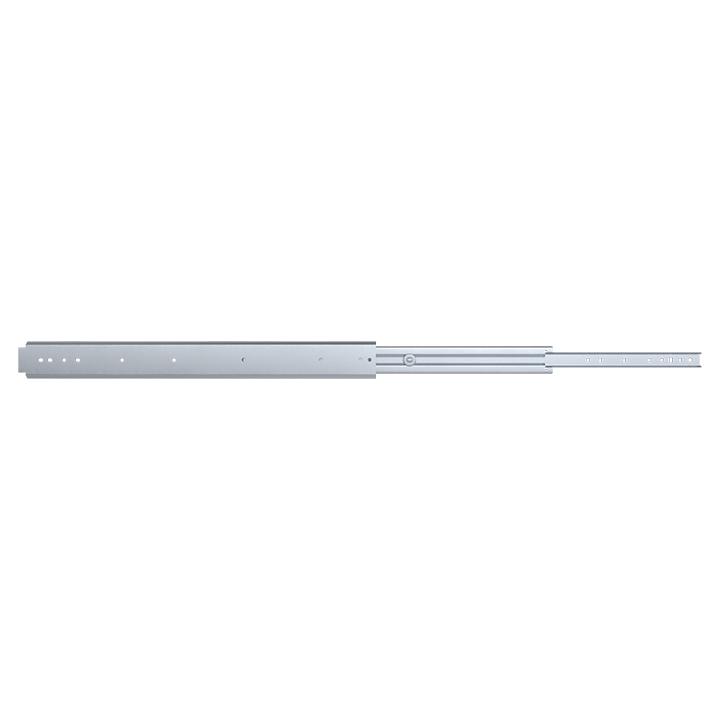

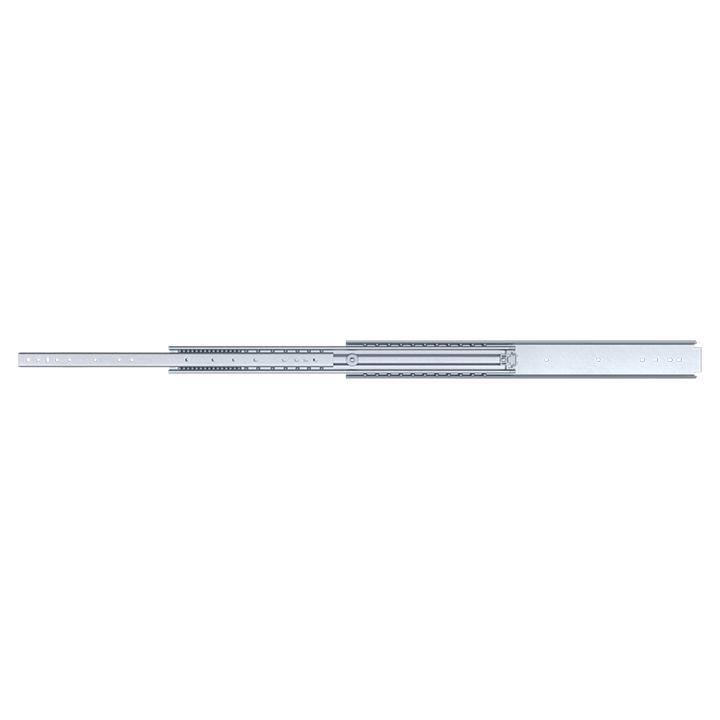

Drawer Slide Light Duty

Regular price $7.39

Size :

Secure payment

Drawer Slide Light Duty - 300MM

Size

$7.39

Description

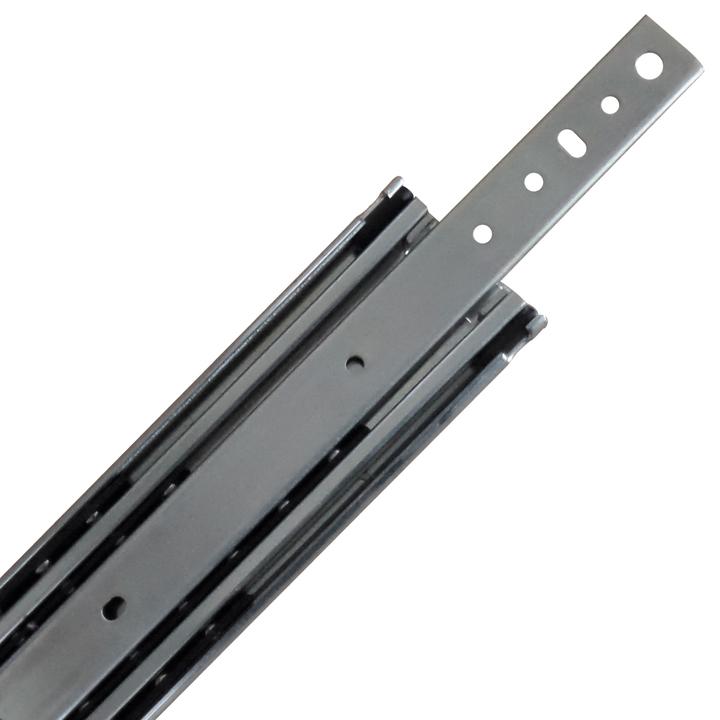

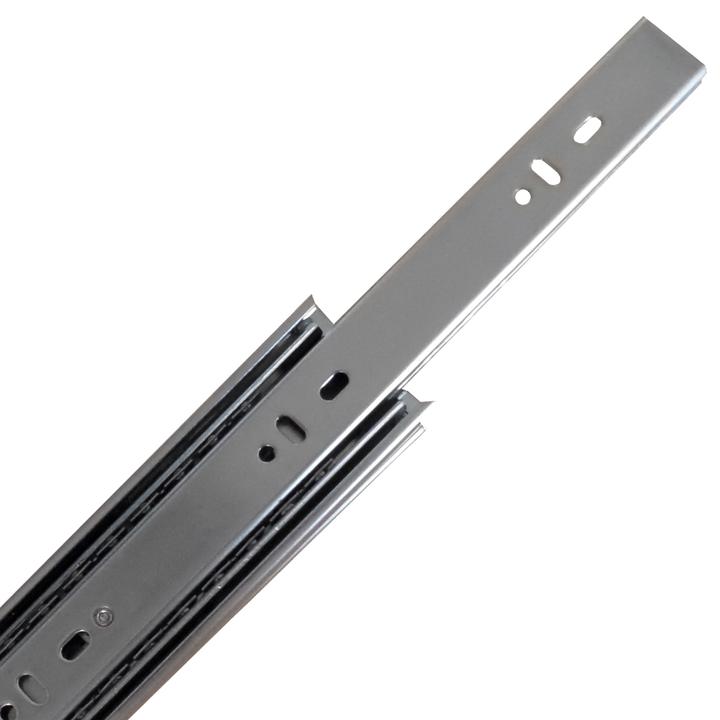

Non-Locking Drawer Slides Light Duty

Our drawer slides / drawer runners offer full extension. These are commonly used in domestic and commercial applications as well as certain offroad environments. These runners can be used in your trailer, caravan, camper trailers, vans, utes and many other solutions.

Features:

Telescopic runners - Slides Open Up 100% Of Themselves.
Disconnectable

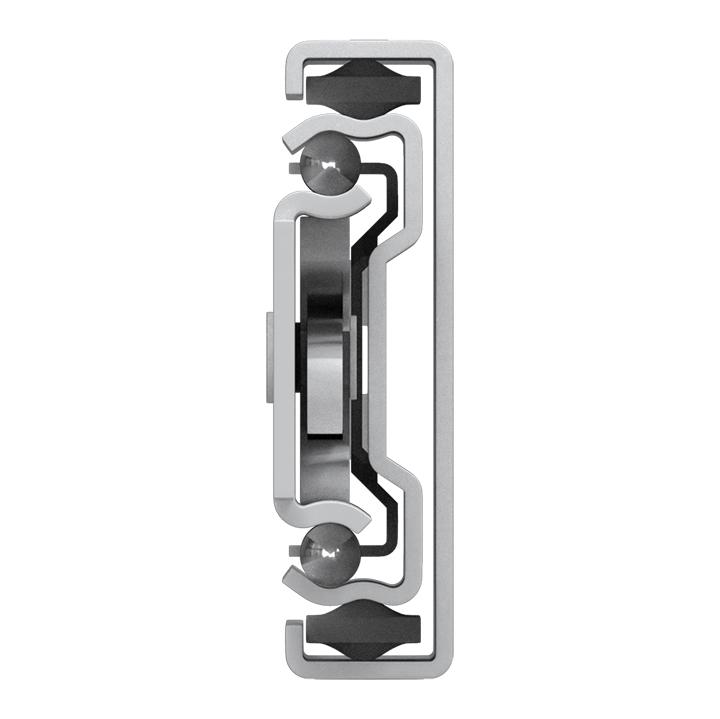

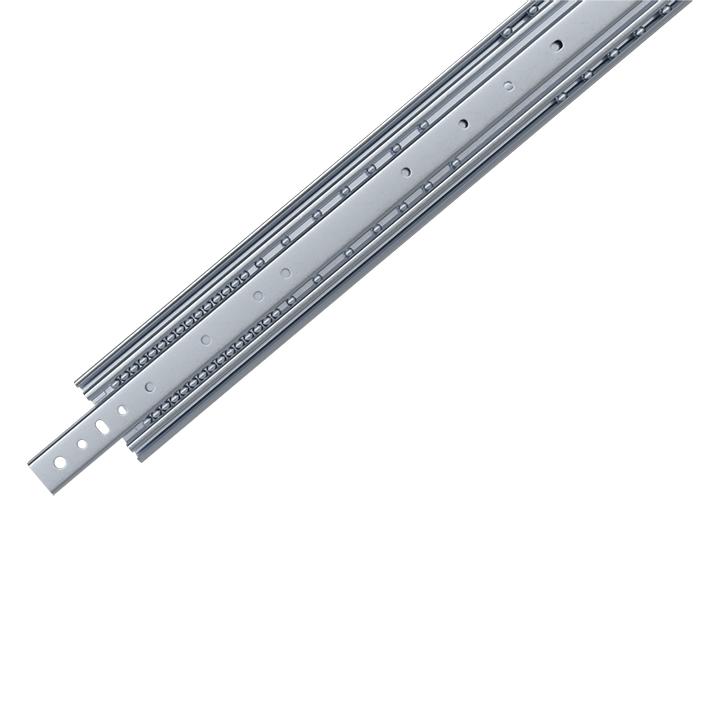

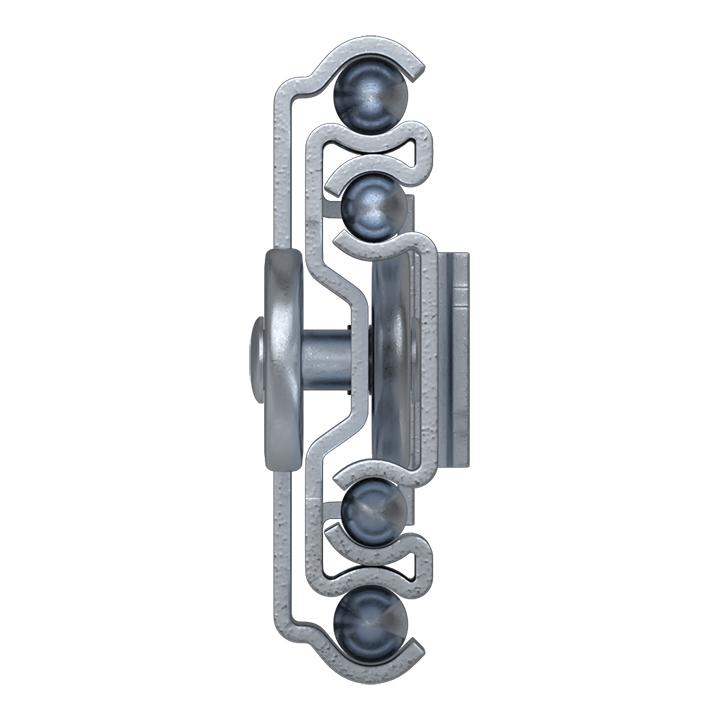

Precision Linear Ball Bearing Motion
Zinc plated body
Very Reliable and Hard Wearing.
Price is for a supplied matching pair. 1 pair = 2 Non-Locking Drawer Slides = 1 x Left & 1 x Right.

Specs:

- 45.4 +/-0.3mm high
- Thickness of slide : 12.7mm +/-0.3.
- Weight Capacity of : 40KG at full extension

**Images are for illustrative purposes only, purchased product may differ from the illustrations on this page**

LK* Weight Bearing Capacity at Full Extension

L* Dimensions are in mm

PART#	L”	A	B	C	D	E	F	G	H	I	A”	B”	C”	D”	LOADING KGS
DSLD300	300	35	64	N/A	224	N/A	N/A	N/A	96	N/A	35	128	352	N/A	40KG
DSLD350	350	35	64	N/A	224	N/A	N/A	N/A	96	N/A	35	128	320	N/A	40KG
DSLD400	400	35	64	N/A	224	288	N/A	N/A	96	N/A	35	96	256	N/A	46KG
DSLD450	450	35	64	N/A	224	352	N/A	N/A	96	N/A	35	160	192	N/A	46KG
DSLD500	500	35	64	224	352	416	N/A	N/A	96	64	35	192	416	N/A	46KG
DSLD550	550	35	64	224	352	416	N/A	N/A	96	64	35	224	448	N/A	40KG
DSLD600	600	35	64	224	352	480	N/A	N/A	N/A	N/A	35	224	512	N/A	40KG
DSLD650	650	35	64	224	352	512	N/A	N/A	N/A	N/A	35	256	544	N/A	40KG
DSLD700	700	35	64	224	352	480	608	N/A	N/A	N/A	35	288	608	N/A	35 KG
DSLD800	800	35	64	224	352	480	672	N/A	N/A	N/A	35	256	512	704	35 KG
DSLD900	900	35	64	224	352	480	608	768	N/A	N/A	35	288	608	800	35 KG
