Gas Strut 1100-505S 14-28 050N M10X1.25

Introducing the E1100-28-505 gas strut – a reliable and versatile gas spring that is ideal for a variety of applications. With the 14/28 which is the designation refers to the diameters of the piston rod and cylinder, respectively, which are carefully engineered to deliver the precise level of support and cushioning required.

This gas strut operates by utilizing a pressurized cylinder filled with nitrogen gas and a piston rod that moves in and out of the cylinder. The piston rod is attached to the load, while the cylinder is fixed to the frame of the application. By controlling the movement of the load, the gas strut delivers superior support and cushioning, enhancing the overall performance of your application.

Our gas strut's design features several key components, including a cylinder, piston, piston rod, seals, and end fittings. These components are constructed with premium-grade materials to ensure durability, reliability, and long-lasting performance. The cylinder, typically made of steel, can withstand the high pressure of the nitrogen gas inside. The piston is attached to the piston rod and moves back and forth inside the cylinder, providing precise control over the movement of the load. The seals prevent gas leakage and maintain the pressure inside the cylinder, while the end fittings ensure secure attachment to the load and the application frame.

With a maximum force capacity of 1800 Newtons and a maximum length of 1100 millimeters, our 14/28 gas strut delivers exceptional performance under a wide range of conditions. Whether you're working in automotive, furniture, aerospace, or industrial machinery, this gas strut is a reliable and efficient way to achieve controlled movement, support, and damping.

Our struts are manufactured under ISO/TS 16949 that has been developed by the industry, “the International Automotive Task Force” (IATF), to encourage improvement in both the supply chain and the certification process. In fact, for the majority of leading vehicle manufacturers, certification to this specification is a mandatory
requirement for doing business.

We promise to deliver high-quality products that achieve value-added status because of reliability and attention to quality. We look forward to building strong, long lasting partnerships with our clients and provide comprehensive product support.

So, if you're looking for a gas spring that is versatile, durable, and delivers superior performance, look no further than our gas struts.

PART NUMBER	Extended Length (mm)	Compressed Length (mm)	STROKE (mm)	Pre-Pressured to (N)	Pressure Range (N)	Thread	Shaft/Cyl Dia (mm)
E1100-28-505	1100	595	505	50	50-1800	M10X1.25	14/28

The images provided are solely for illustrative purposes and the final product may vary from the visuals projected, Check out our other items!

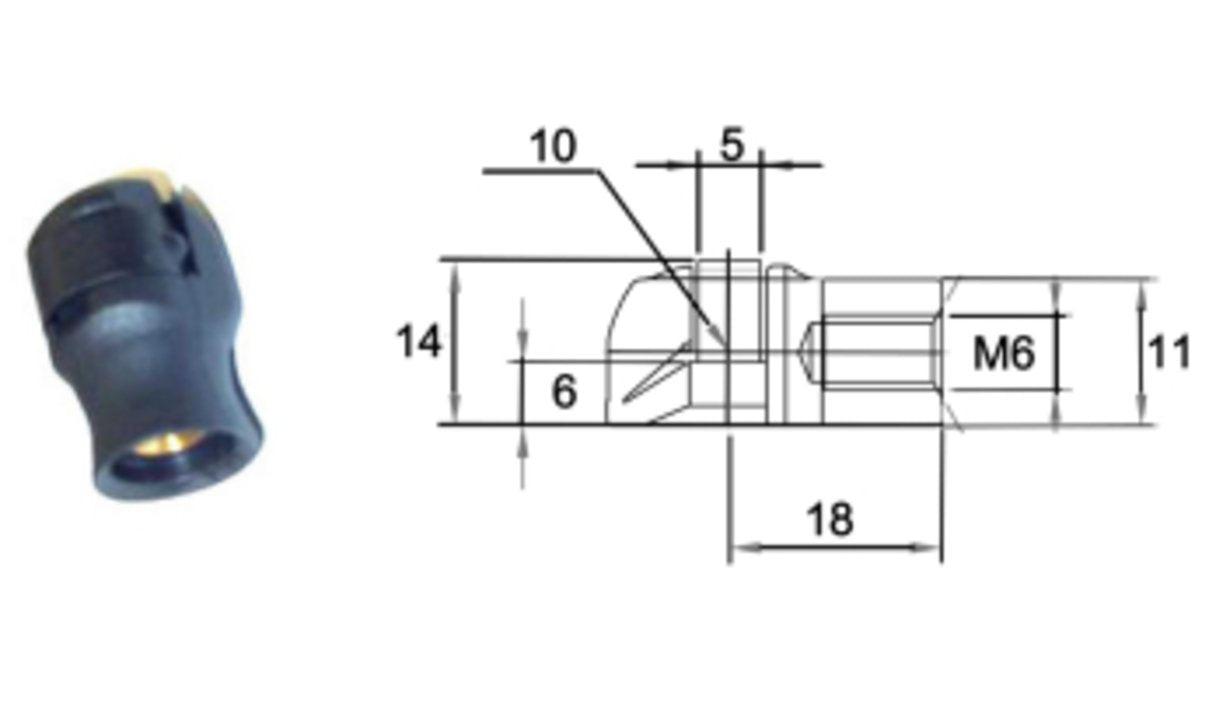

10MM P/Flared Cup 18MM Cent M6X1 Pls-22
