TILA Aluminium and Rubber Continuous Hinge - 3m - With Pre-Drilled holes

Suitable for doors, tailgates, and canopies.
Only minimal external protrusion. A contribution towards road safety since the risk of injury caused by dangerous, protruding fittings, is eliminated.
Hinge and seal all-in-one - along the entire length.
Absolute precision - when in the closed position the two aluminium profiles interlock together. They can only be dismantled when the door or tailgate is open. Forced entry can only be made by cutting the plastic profile, leaving behind visible evidence.
Virtually no wear.
Totally maintenance-free - has been in practical use for more than two decades, primarily in the bodywork and vehicle area, tried and tested.

The hinge takes a specially moulded plastic profile made from a special POLYURETHANE elastomer with permanent elasticity and high tear resistance. Opening angles of more than 180° or 270° are achieved depending on the profile design.

Installation is extremely simple since the TILA continuous hinge is supplied in the open position using spacers and with holes already pre-drilled, ready for installation.

Can be fitted to doors, tailgates, lids of all kind, as single element or as an add-on unit, in bodywork and vehicle construction, for boot and van fixings, sales vehicles and buses etc. For use wherever flaps, lids and doors are required.

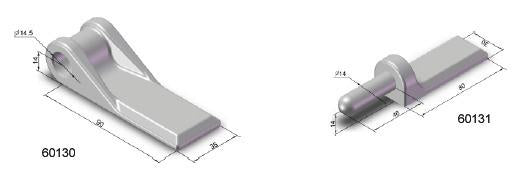

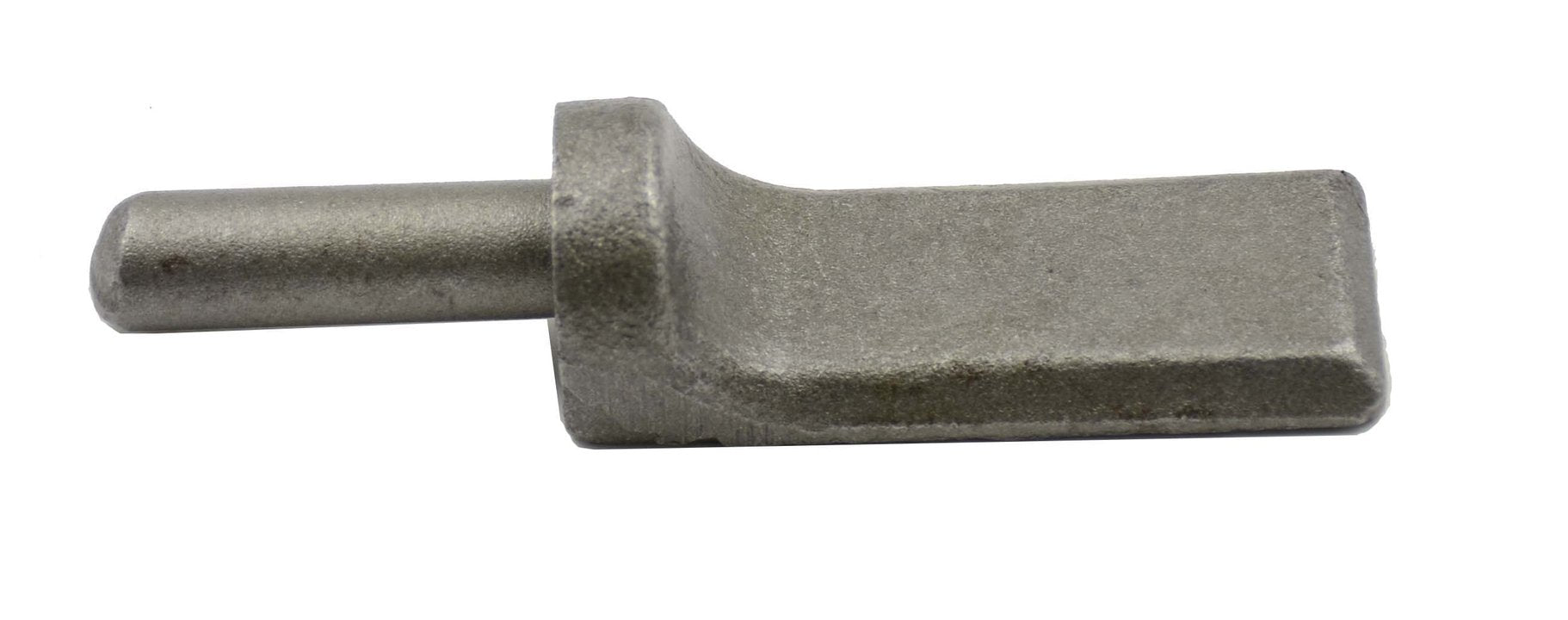

Dropside Gudgeon - Pin Only

Dropside Gudgeon - Pin Only
