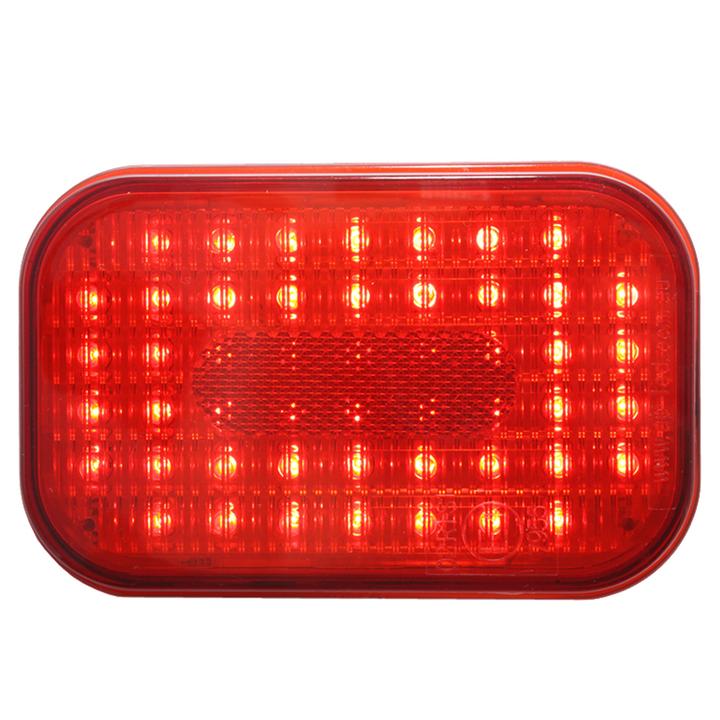

Led Insert Rectangular Stop/Tail

AP10511. Red - Stop/Tail. Equivalent in dimension to the popular sealed lighting systems. These lamps offer a simple retro-fit to LED. Polycarbonate construction multi-volt circuitry and 50 LEDs per lamp ensure outstanding performance.

Lamps can be flush mounted into rubber grommets (AP10517) or a stainless steel flange (AP10516) to be bought separately.

Number of LEDs : 50

Lens Material : Polycarbonate

Bracket/Housing : ABS Plastic

Voltage : 10-30V

Current Draw : 0.4A Tail, 0.24A Stop.

Barcode : 9333938003593

Grommet Hole Cut Out : 139mm x 91mm with 19mm corner radius. Light dimensions Length : 135mm, Width : 86.5mm, Height : 46mm.
If LOK 3 Pin Plug Is Required, Please Order AP10509.
