The Tru Vision 556 Series LED Rear Combination Lamp Twin Pack is a sleek, modern lighting solution designed for trailers, caravans, and 4WD applications. Featuring a slimline profile and high-output LEDs, this lamp delivers reliable performance with enhanced visibility and safety on the road.

With integrated stop, tail, indicator, and reverse functions, plus a sequential indicator for improved signalling clarity, the 556 Series combines functionality with contemporary styling. Built using durable materials and sealed to an IP67 rating, it’s engineered to withstand harsh Australian conditions.

Features

Slimline LED rear combination lamp with modern design
Multi-function: stop, tail, indicator and reverse light
Sequential indicator for improved visibility and safety
Available in left-hand and right-hand configurations
High-quality PMMA lens for durability and clarity
Robust ABS plastic housing for long-lasting performance
Low current draw for efficient operation
IP67 rated for dust and water resistance
Suitable for trailers, caravans, and 4WD applications

Specifications

Series: 556 Rear Combination Lamp
Part Numbers: TRU10556L (Left), TRU10556R (Right)
Functions: Stop, Tail, Indicator (Sequential), Reverse
Voltage: 10–30V
Lens Material: PMMA
Housing Material: ABS Plastic
IP Rating: IP67
Dimensions: 356mm (L) x 86mm (H) x 35mm (D)
Mounting Spacing: 116mm
Current Draw (13.5V):
- Indicator: 10mA
- Tail: 90mA
- Stop: 380mA
- Reverse: 200mA
Approvals: ADR / ECE compliant (CTA-061731)

Inclusions

1 x Left Combination Lamp
1 x Right Combination Lamp

The Tru Vision 556 Series Rear Combination Lamp is ideal for upgrading or replacing rear lighting on trailers, caravans, and work vehicles, offering a combination of durability, efficiency, and modern styling.

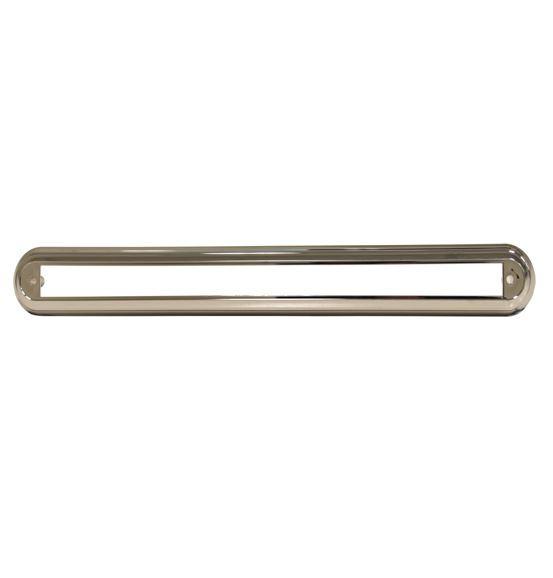

Single Chrome Bracket - Ap10066
