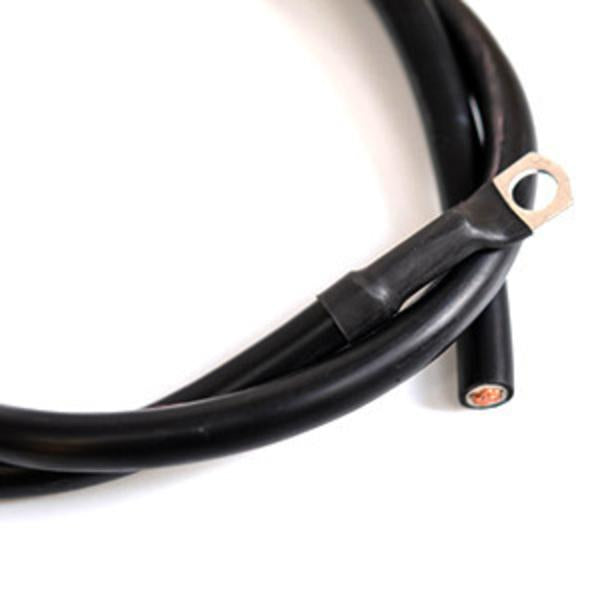

Piranha 16mm² Earth Strap – 700mm with One Lug

Reliable Grounding for Vehicle Electrical Systems

The Piranha 16mm² Earth Strap provides a practical grounding connection for dual-battery systems and auxiliary vehicle electrical installations. Its 700mm length offers installation flexibility, while the supplied lug reduces the amount of termination work required during installation.

A sound earth connection is essential for dependable electrical performance. When correctly sized and installed, this strap can help create a low-resistance return path between compatible batteries, equipment and vehicle grounding points.

Key Features

• 16mm² cable size: Suitable for compatible automotive grounding applications.
• 700mm length: Provides flexibility when positioning batteries and auxiliary electrical equipment.
• Pre-lugged connection: One lug is included for easier installation.
• Versatile application: Suitable for compatible dual-battery, auxiliary power and vehicle grounding installations.
• Simple installation: Can be routed between suitable equipment and a correctly prepared vehicle earth point.

Specifications

• SKU: DBES
• Cable cross-section: 16mm²
• Overall length: 700mm
• Termination: Includes one lug
• Product type: Automotive earth strap

Inclusions

• 1 x 700mm-long 16mm² earth strap
• 1 x fitted lug

Common Applications

• Dual-battery installations
• Auxiliary battery grounding
• Canopy and tray electrical systems
• Compatible vehicle accessories
• Battery-to-chassis or equipment-to-earth connections where appropriately sized

Installation Information

The cable size, lug hole diameter and connection method must suit the maximum expected current and the equipment being installed. Connect the strap to a secure grounding point with clean, bare metal that is free from paint, dirt and corrosion. Tighten the connection correctly, protect it against corrosion and route the strap away from sharp edges, heat and moving components.

Disconnect the vehicle battery before installation. Professional installation by a qualified automotive electrician is recommended if you are unsure about cable sizing or grounding locations.

Frequently Asked Questions

What does an earth strap do?
It provides an electrical return path between a battery, accessory, chassis or other suitable grounding point.

Is this strap supplied with terminals on both ends?
The product is specified as including one lug. The other end may require an appropriate termination or connection to suit the installation.

Will it fit every vehicle?
It is a universal electrical component, but suitability depends on the required length, cable capacity, lug size and mounting arrangement.

Why must the mounting point be clean and free from paint?
Paint, rust, dirt and loose fasteners can increase resistance, causing voltage drop, heat and unreliable accessory operation.
