Tru Vision 556 Series Stop Tail Sequential Indicator Reverse 10-30V Twin Pack (LR)
$338.91
The Tru Vision 556 Series LED Rear Combination Lamp Twin Pack is a sleek, modern lighting solution designed for trailers, caravans, and 4WD applications. Featuring a slimline profile and high-output LEDs, this lamp delivers reliable performance with enhanced visibility and safety on the road.
Tru Vision 556 Series Sequential LED Tail Lights – Twin Pack
Give your ute tray, trailer, caravan or work vehicle a clean, modern rear lighting upgrade with the Tru Vision 556 Series LED Rear Combination Lamp Twin Pack.
Each slimline lamp combines stop, tail, reverse and sequential indicator functions in one distinctive black housing. The dynamic sweeping indicators create an eye-catching appearance while providing clear directional signalling to other road users.
Measuring only 35mm deep, the 556 Series delivers a streamlined surface-mounted finish without the bulk of separate lighting assemblies. Its 10–30V multivolt circuitry makes it suitable for both 12V and 24V electrical systems, while the IP67-rated construction provides dependable protection against dust and water ingress.
Key Features
- Dynamic sequential indicators: Provide modern styling and highly visible directional signalling.
- Four functions in each lamp: Combines stop, tail, indicator and reverse lighting in one compact unit.
- Slimline black design: Creates a clean, contemporary finish on ute trays, trailers and vehicle bodies.
- Bright LED output: Clearly defined stop, tail and reverse functions help other road users see your intentions.
- 10–30V multivolt operation: Suitable for common 12V and 24V vehicle electrical systems.
- IP67 rated: Sealed against dust and water ingress for reliable outdoor and off-road use.
- Low current consumption: Efficient LED technology reduces electrical load compared with conventional globes.
- ADR/ECE compliant: Certified under CTA approval number CTA-061731.
- Complete matching pair: Supplied with dedicated left-hand and right-hand lamps.
Specifications
- Brand: Tru Vision
- Series: 556
- SKU: TRU10556TW-BL
- Functions: Stop, tail, sequential indicator and reverse
- Operating voltage: 10–30V DC

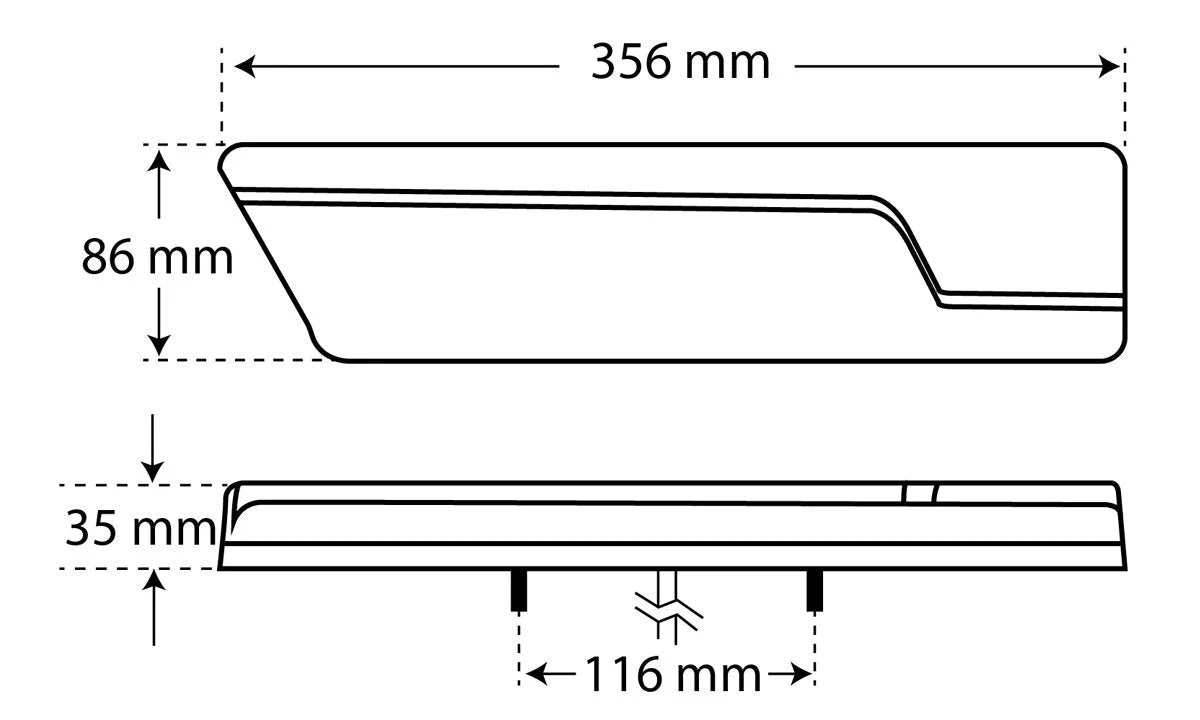

- Dimensions: 356mm long x 86mm high x 35mm deep
- Mounting-hole spacing: 116mm
- Lens material: Acrylonitrile Styrene (AS)
- Housing material: ABS plastic
- IP rating: IP67
- Indicator current draw: 210mA at 13.5V
- Tail current draw: 90mA at 13.5V
- Stop current draw: 380mA at 13.5V
- Reverse current draw: 200mA at 13.5V
- ADR categories: 01/00, 06/00 and 49/00
- CTA approval: CTA-061731
- Warranty: 2 years
Inclusions
- 1 x Left-hand Tru Vision 556 combination lamp
- 1 x Right-hand Tru Vision 556 combination lamp
Ideal Applications
- Ute trays and service bodies
- 4WD touring builds
- Trailers and camper trailers
- Caravans
- Trucks and commercial vehicles
- Custom vehicle projects
Installation Note
Correct wiring is required for all lighting functions. Some late-model or CAN bus-equipped vehicles may require a vehicle-specific loom, load resistors or rectifiers to prevent hyperflashing or incorrect sequential-indicator operation. Vehicle-specific plug-and-play looms are available separately for selected models.
